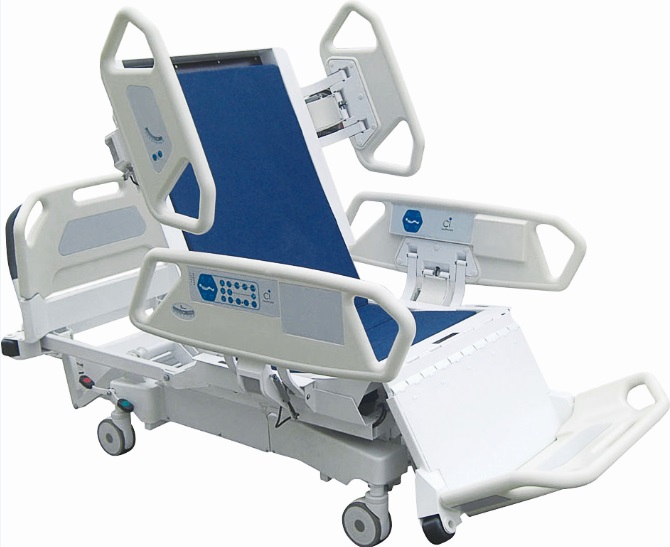

HF-JTS801 ICU BED with Scale

Add Time：2025/4/28 12:24:01

8-Function Electric ICU Chair Bed

The model is special use for intensive care, with 8 function,

Chair position

Specification:

1. Size:2230*1050*500-1000mm, bed platform size:1960*900mm
2. Detachable ABS headboard/footboard,
3. 4-part steel bedboards, backrest for x-ray and equipped with inside mattress
4. Detachable ABS handrails, each side two pieces,
5. Embedded controllers on two side rails on footside
6. with angle indicator for Trendelenburg & anti-Trendelenburg,
7. two side rails on head side with angle indicator for backrest.
8. Linak motors with backup batteries
9. Weighing function, accuracy optional: 0.02KG
10. Alarm system: once patients get out of bed, the alarm works
11. manual cpr and electric CPR
12. Guard bumper wheels at each corner of bed
13. Central-controlled braking system, four silent wheels, φ125mm;
14. With fifth wheel, controlled by foot pedal

8-function:
1) Backrest max upward angle: 75°
2) Footrest max upward angle: 40°
3) Height adjustment: 500-1000mm
4) Trendelenburg: 12°
5) Anti-trendelenburg: 12°
6) Weighing function
7) Cardiac chair position function
8) Electric height stretchable function:200mm
