HF-IE001 ICU BED wth Scale

Add Time：2021/12/8 14:16:02

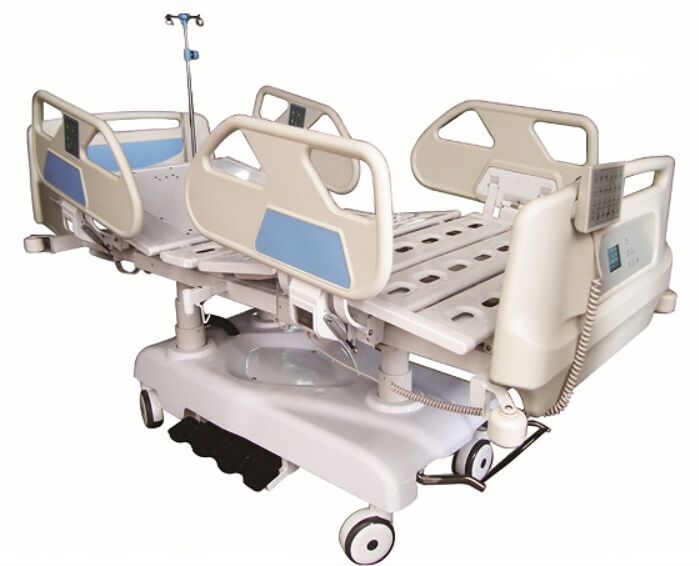

HF-HE001 8-Function Electric Bed with weighing system

It is luxury electric bed, Major use for Intensive care ward, with high quality

And Linak motor of Denmark brand

Specification:

• 1) Overallsize (L*W*H):2230*1050*520-920mm, platform size:1960*900mm
• 2) Frame: steel, treated by sand-balsting and electrostatic powder-coating
• 3) Headboard/footboard:ABS,Detachable
• 4) Side rail: Detachable, ABS
• 5) Rail controller: embedded on side rail at head side
• 6) Handset controller: movable
• 7) Nurse controller: embedded on footboard
• 8) Motor: Linak motor from Denmark,with backup batteries
• 9) Manual CPR handles at head side
• 10) Backrest for x-ray, electric panel made in America
• 11) Castors: four Central-controlled silent wheels, φ150mm
• 12) Four foot pedals at each side:all functions can be operated by the pedals on both side
• 13) Plastic bumpers at each corner
• 14) Angle indicators: embedded on side rail for backrest, Trendelenburg and anti-Trendelenburg
• 15)Weight load: static safe load 400kg, dynamic safe load: 170kg
• 16)Standard accessories:I.V pole 1pc, IV pole holes 4pcs, Drainage hooks 2pcs
•

• 8-function:
• 1) Backrest max upward angle: 70°
• 2) Footrest max upward angle: 30°
• 3) Height adjustment: 450-700mm
• 4) Trendelenburg: 12°
• 5)Anti-trendelenburg: 12°
• 6) Right turning: 17°
• 7) Left turning: 17°
• 8) Weight scale (Optional)
